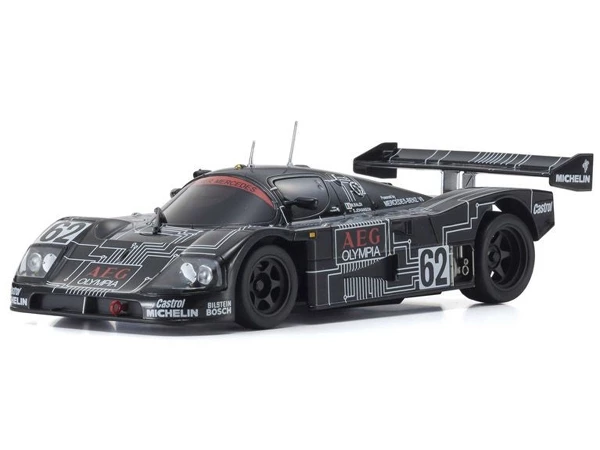

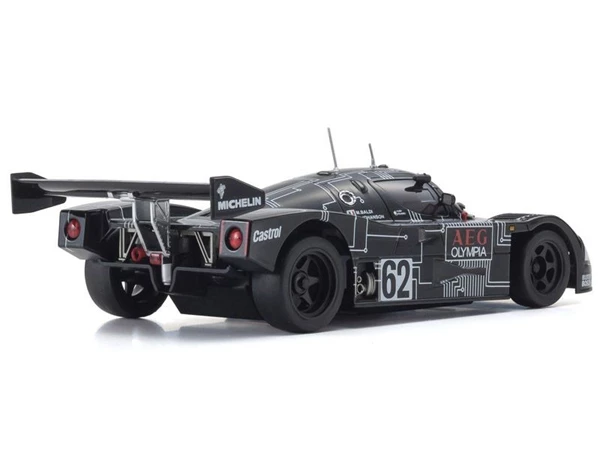

Kyosho Mini-Z RWD Sauber Mercedes C9 AEG No.62 LM 1988 (W-LM/KT531P)

RWD chassis with new transmitter combination launches a new series to follow the MR-03.

With just 8 x AAA-size batteries, the MINI-Z Racer allows anyone to enjoy the beautiful style and advanced performance of R/C cars. First launched in 2013, Kyosho has renewed the MINI-Z Racer Sports MR-03 concept to be even more user-friendly and appealing to more drivers with the MINI-Z RWD series! Widely popular body styles in highly detailed body sets create the incredibly realistic model lineup. Including the latest Syncro KT-531P transmitter with steering trim, throttle trim, dual rate, LED control function, the sponge grip of the steering wheel provides comfortable fit for precision control feel. The set also includes a car body finished to display-model standard that matches stunning style with the performance, reliability and durability of the MR-03 chassis. The new control program on the newly designed circuit board realizes linear handling characteristics and can be further enhanced for even easier control by installing the optional gyro unit (MZW431). This series represents the perfect package for a deep dive into the amazing world of R/C cars!
*Syncro KT-531P transmitter uses FHSS 2.4GHz and is not compatible with existing ASF/MHS/FHS 2.4GHz systems.

• New series includes the newly developed Syncro KT-531P transmitter with multiple setting options.
• New circuit board with newly developed control program realizes dramatically improved steering feel.
• Highly detailed display-standard body is fully factory finished.
• Full ball bearing specifications include 7 bearings, previously an optional upgrade.
• Compatible with all MINI-Z Racer body styles. **Motor case and diff gear assembly to suit body are required to be purchased separately.
• Front suspension incorporates VCS that optimizes camber angle with suspension stroke.
• Compatible with optional gyro unit (MZW431). Volume of gyro effect can be adjusted on the chassis. (**Settings can be adjusted from the transmitter if using KT-432PT transmitter (sold separately)).
• Compatible with optional LED light unit clear & red (MZW429R).

Technical Data

• Length 181.0mm
• Width 78.0mm
• Height 40.0mm
• Wheelbase 102.0mm (3L)
• Tread Wide
• Chassis RWD(MR-03)
• Motor Mount LM
• Front Wheel Offset Narrow +2.7mm
• Front Wheel Offset Wide +0.8mm
• R/C System Syncro KT-531P

Readyset Contents

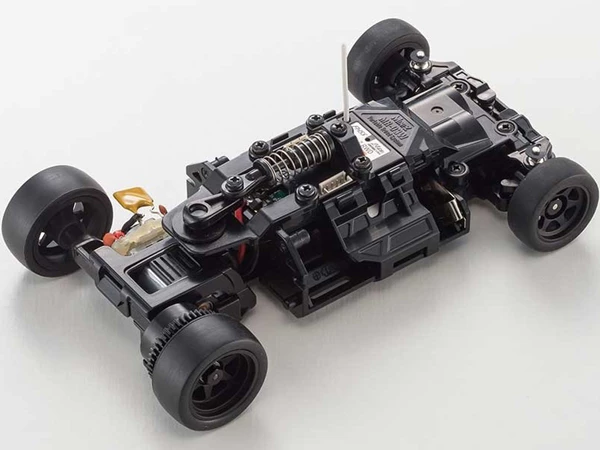

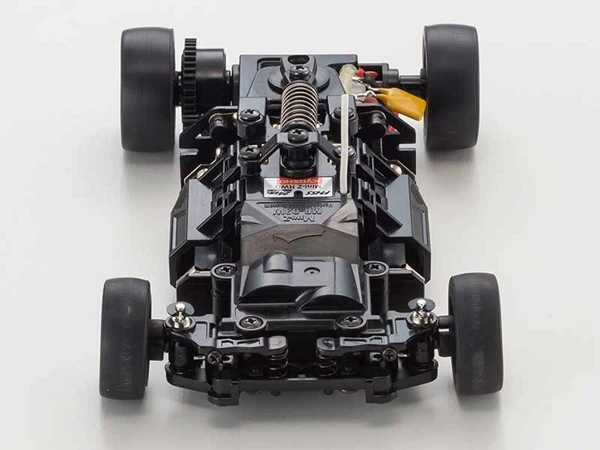

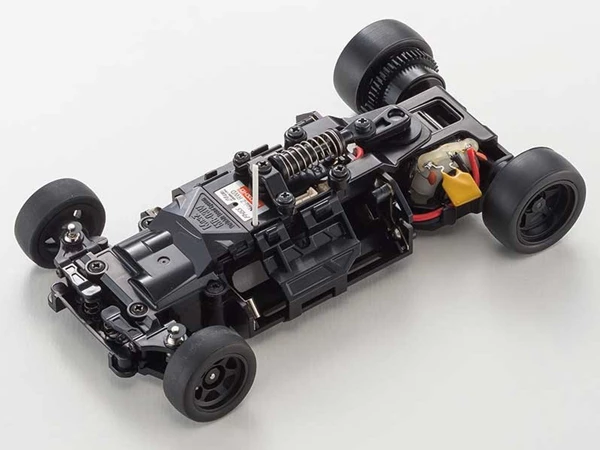

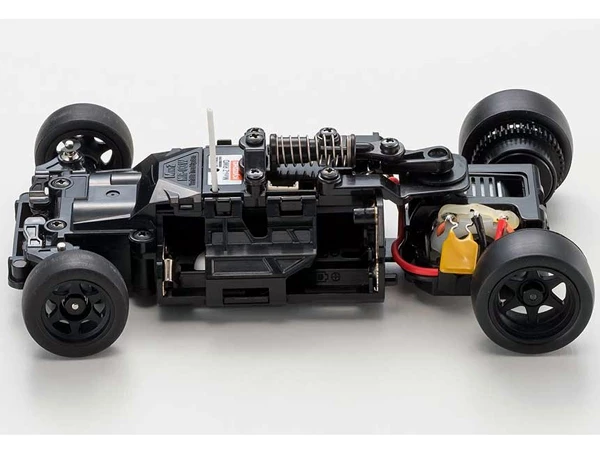

• Factory assembled chassis
• Pre-painted plastic body, complete with markings

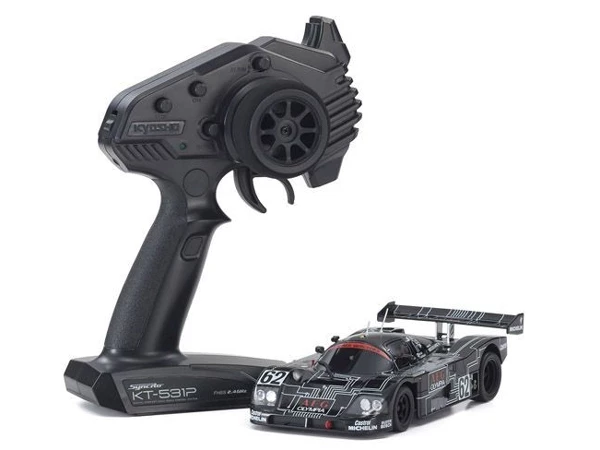

• 2.4GHz Perfex KT-531P 2.4GHz transmitter
• Front tread adjustment parts set
• Front suspension adjustment spacers
• Pinion gears 6T, 7T, 8T, 9T
• Wheel wrench
• Pinion gear tool
• Spare nuts
• Pairing stick
• Tires, wheels
• Mini pylons

Required for Operation

• AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
• AAA-size alkaline batteries x 4 for transmitter

Specification

Manufacturer	Kyosho
Part Number	32327AG
EAN	4548565362462
Drive	2WD
Surface Type	On-Road
Assembly Type	Assembled (RTR)
Vehicle	On-Road
Skill Level	Skill Level 3
Motor Type	Brushed
Power Bundles	No Bundle Required
